Other name: Rubber brake hose, Auto brake hose, Brake tube, Flexible brake rubber hose Tube: NBR black, smooth, oil resi.....
Other name: Rubber brake hose, Auto brake hose, Brake tube, Flexible brake rubber hose
Tube: NBR black, smooth, oil resistant
Reinforcement: textile braided high tensile synthetic yarn
Cover: black CR, Ozone and Abrasion resistant, smooth
Applications: for pneumatic air brake system, also suitable as hydraulic low pressure hose.
Working Temperature: -40°C + 100°C

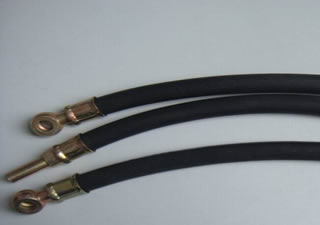

Structure picture | Real product picture |
ID | ID | Wall | WP | BP | MIN RADIUS | WEIGHT |
mm | inch | mm | bar | bar | mm | kg/m |
10 | 3/8" | 4,5 | 10 | 60 | 30 | 0.32 |
13 | 1/2" | 4,5 | 10 | 60 | 40 | 0.38 |
16 | 5/8" | 5,5 | 10 | 60 | 55 | 0.53 |
