Textile Braided and Spiraled Hose
Twin Welding Hose
Rubber Twin Welding Hose, Flexible Reinforced welding Hoses, Reinforced twin welding hose pipe line. Tube: Black, smoot.....
Other name: Rubber Twin Welding Hose, Flexible Reinforced welding Hoses, Reinforced twin welding hose pipe line.
Tube: Black, smooth, synthetic rubber.
Reinforcement: High-tensile synthetic yarn braided or spiraled.
Cover: Blue and red, smooth synthetic rubber, abrasion, weather and abrasion resistant
Application: Suitable for welding and cutting equipment to transport oxygen and acetylene.
Working Temperature: -35℃ to 90℃.
|  |

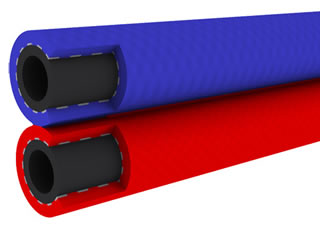

| Structure picture | Real product picture |
| I.D. | O.D. | W.P. | B.P. | WEIGHT | LENGTH MAX. | |||
| MM | INCH | MM | MPA | PSI | MPA | PSI | KG/M | M/ROLL |
| 5 | 3/16" | 12 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.13 | 100±1% |
| 6 | 1/4" | 13 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.15 | 100±1% |
| 8 | 5/16" | 15 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.23 | 100±1% |
| 10 | 3/8" | 17 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.26 | 100±1% |
| 13 | 1/2" | 22 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.36 | 100±1% |
