Suction and Discharge Hose
Suction and Discharge Cement Hose
Other name: Cement suction hose, Cement suction and discharge hose, Spiral wire reinforced rubber hose, Corrugate rubber.....
Other name: Cement suction hose, Cement suction and discharge hose, Spiral wire reinforced rubber hose, Corrugate rubber hose.
Tube: Black, smooth, compounded for long wear resistance in handling hard, sharp abrasive materials such as sand, gravel, shells, stones, etc.
Reinforcement: High-strength synthetic cord plus helix wire.
Cover: black, corrugated (wrapped finish) synthetic rubber highly resistant to weather, sea-water and abrasion.
Application: Dry material suction and delivery hose specially designed for transferring dry cement, sand gravel, feed, seeds, etc. by suction, gravity or by pneumatic systems.
Working Temperature: -40℃ to 85℃
|  |

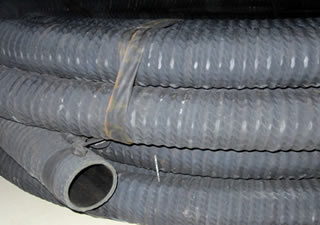

| Structure picture | Real product picture |
I.D | O.D | W.P. | B.P. | WEIGHT | LENGTH MAX. | |
MM | INCHI | MM | MPA | MPA | KG/M | M/ROLL |
51 | 2" | 63 | 10 | 30 | 1.72 | 60 |
64 | 2.1/2" | 77 | 10 | 30 | 2.37 | 60 |
76 | 3" | 91 | 10 | 30 | 3.86 | 60 |
102 | 4" | 120 | 10 | 30 | 4.33 | 60 |
127 | 5" | 148 | 10 | 30 | 7.23 | 60 |
152 | 6" | 175 | 10 | 30 | 10.18 | 40 |
