SAE 100R7 Hydraulic Rubber Hose
This kind of hose is made of Inner Tube (Nylon), reinforcement (High Flexibility Nylon or Thermoplastic). It is Lightwei.....
Construction: This kind of hose is made of Inner Tube (Nylon), reinforcement (High Flexibility Nylon or Thermoplastic). It is Lightweight, Flexibility, and the inner tube is very smooth. With a few loss of Pressure, the hose resistance of the medium flowing is small, and it also owns a fine performance of Anti-chemical and Impulse.
Tube: thermoplastic inner tube (nylon)
Reinforcement: suitable synthetic fiber reinforcement.
Cover: hydraulic fluid and weather resistant thermoplastic cover.
Application: Automobile, Engineering Machinery, Lathe, Agriculture Machine, Mining, Spurting the Oil Paint, Avigation & Space flight, Cooling and other Hydraulic Control System.
Working temperature: -40℃~+93℃.
|  |

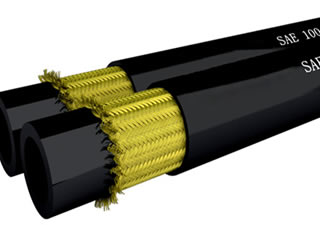

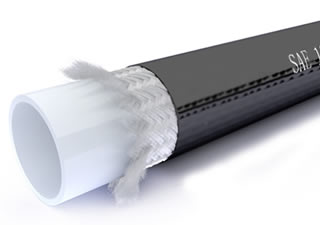

| Structure picture | Real product picture |
| Nominal Size | Inside Diameter | Outside Diameter | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| inch | mm | mm | MPa | psi | MPa | psi | mm | kg/m | |
| 3 | 1/8" | 3.3 | 8.5 | 17.2 | 2500 | 68.9 | 10000 | 13 | 0.037 |
| 5 | 3/16" | 4.8 | 10.8 | 20.7 | 3000 | 82.7 | 12000 | 20 | 0.068 |
| 6 | 1/4" | 6.4 | 13 | 20.7 | 3000 | 82.7 | 12000 | 33 | 0.085 |
| 8 | 5/16" | 7.9 | 15.1 | 17.2 | 2500 | 68.9 | 10000 | 46 | 0.103 |
| 10 | 3/8" | 9.5 | 17 | 15.5 | 2250 | 62.1 | 9000 | 51 | 0.141 |
| 13 | 1/2" | 12.7 | 20.7 | 13.8 | 2000 | 55.2 | 8000 | 76 | 0.21 |
| 19 | 3/4" | 19 | 27.1 | 8.6 | 1250 | 34.5 | 5000 | 127 | 0.287 |
| 25 | 1" | 25.4 | 34 | 6.9 | 1000 | 27.6 | 4000 | 203 | 0.542 |
