Fabric-reinforced Rubber Hose
Fabric Reinforced Steam Hose
Other name: Steam hoses, steam delivery hose, Rubber steam tubing, Reinforced steam hoses, heat-resistance rubber hose, .....
Other name: Steam hoses, steam delivery hose, Rubber steam tubing, Reinforced steam hoses, heat-resistance rubber hose, pressure steam rubber hose
Tube: Black, heat-resistance synthetic rubber.
Reinforcement: High-tensile synthetic fabric or cotton cloth.
Cover: Black synthetic rubber, weather and abrasion resistant.
Applications: For intermittent conveying of saturated vapor or superheated water at a temperature below 175℃; the vapor pressure above 0.4MPa is not allowed.
Working Temperature: -35℃ to 175℃.
|  |

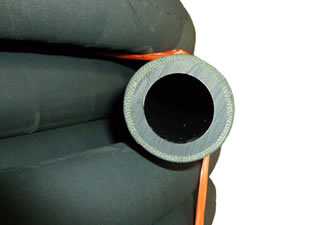

| Structure picture | Real product picture |
| I.D. | Ply. | W.P. | B.P. | LENGTH MAX. | |
| MM | INCH | MPA | MPA | M/ROLL | |
| 16 | 5/8" | 4~7 | 0.5~1.0 | 2.5~5.0 | 20 |
| 19 | 3/4" | 4~7 | 0.5~1.0 | 2.5~5.0 | 20 |
| 25 | 1" | 5~7 | 0.5~1.0 | 2.5~5.0 | 20 |
| 32 | 1.1/4" | 5~7 | 0.5~1.0 | 2.5~5.0 | 20 |
| 38 | 1.1/2" | 5~8 | 0.5~1.0 | 2.5~5.0 | 20 |
| 51 | 2" | 6~10 | 0.5~1.0 | 2.5~5.0 | 20 |
| 64 | 2.1/2" | 6~10 | 0.5~1.0 | 2.5~5.0 | 20 |
| 76 | 3" | 6~10 | 0.5~1.0 | 2.5~5.0 | 20 |
| 89 | 3.1/2" | 6~12 | 0.5~1.0 | 2.5~5.0 | 20 |
| 102 | 4" | 6~12 | 0.5~1.0 | 2.5~5.0 | 20 |
| 127 | 5" | 6~12 | 0.5~1.0 | 2.5~5.0 | 20 |
| 150 | 6" | 6~12 | 0.5~1.0 | 2.5~5.0 | 20 |
