Fabric-reinforced Rubber Hose
Fabric Reinforced Cold Water Hose
Applications: For delivery of water and other neutral liquids at normal temperature in industry, mining, agriculture, co.....
Other name: Rubber water hoses, Water delivery hose, Rubber water tubing, Reinforced water hoses.
Tube: Black, synthetic rubber.
Reinforcement: High-tensile synthetic fabric or cotton cloth.
Cover: Black synthetic rubber, weather and abrasion resistant.
Applications: For delivery of water and other neutral liquids at normal temperature in industry, mining, agriculture, construction work, parks and home.
Features: It is excellent in flexibility with aging resistance and light weight.
Working Temperature: -35℃ to 80℃.
|  |

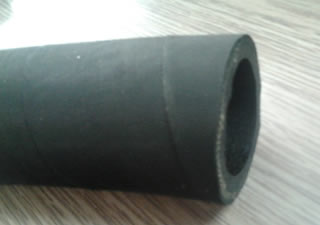

| Structure picture | Real product picture |
| I.D. | Ply. | W.P. | B.P. | LENGTH MAX. | |
| MM | INCH | MPA | MPA | M/ROLL | |
| 13 | 1/2" | 1~3 | 0.3~1.0 | 0.9~3.0 | 20 |
| 16 | 5/8" | 2~4 | 0.3~1.0 | 0.9~3.0 | 20 |
| 19 | 3/4" | 2~7 | 0.3~1.0 | 0.9~3.0 | 20 |
| 25 | 1" | 2~7 | 0.3~1.0 | 0.9~3.0 | 20 |
| 32 | 1.1/4" | 3~7 | 0.3~1.0 | 0.9~3.0 | 20 |
| 38 | 1.1/2" | 3~8 | 0.3~1.0 | 0.9~3.0 | 20 |
| 51 | 2" | 4~10 | 0.3~1.0 | 0.9~3.0 | 20 |
| 64 | 2.1/2" | 4~10 | 0.3~1.0 | 0.9~3.0 | 20 |
| 76 | 3" | 4~10 | 0.3~1.0 | 0.9~3.0 | 20 |
| 89 | 3.1/2" | 4~12 | 0.3~1.0 | 0.9~3.0 | 20 |
| 102 | 4" | 4~12 | 0.3~1.0 | 0.9~3.0 | 20 |
| 127 | 5" | 4~12 | 0.3~1.0 | 0.9~3.0 | 20 |
| 150 | 6" | 4~12 | 0.3~1.0 | 0.9~3.0 | 20 |
