Suction and Discharge Hose
Suction and Discharge Oil Hose
Other name: Oil suction hose, Oil resistance suction and discharge hose, pressure oil suction hose, Spiral wire reinforc.....
Other name: Oil suction hose, Oil resistance suction and discharge hose, pressure oil suction hose, Spiral wire reinforced rubber hose, corrugate rubber hose.
Tube: Black, smooth, nitrile rubber compound.
Reinforcement: High-strength synthetic cord plus helix wire.
Cover: Black, smooth (wrapped finish) high grade chloroprene rubber, compounded for an excellent resistance to weather, ozone, abrasion and oil.
Application: Used for the delivery and transfer of a wide range of petroleum products.
Working Temperature: -40℃ to 100℃
|  |

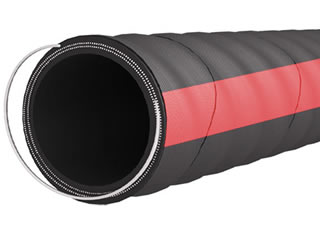

| Structure picture | Structure picture |
 |  |

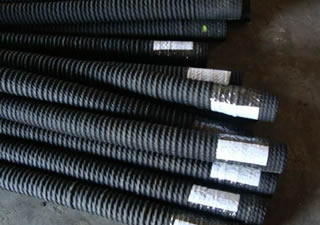

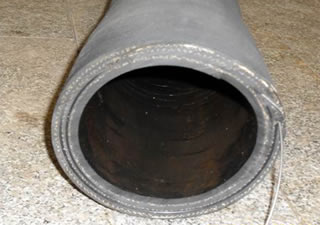

| Real product picture | Real product picture |
Specification:
I.D | O.D | W.P. | B.P. | WEIGHT | LENGTH MAX. | |
MM | INCHI | MM | MPA | MPA | KG/M | M/ROLL |
25 | 1” | 36 | 0.3~1.0 | 0.9~3.0 | 0.9 | 60 |
32 | 1.1/4” | 45 | 0.3~1.0 | 0.9~3.0 | 1.1 | 60 |
38 | 1.1/2” | 52 | 0.3~1.0 | 0.9~3.0 | 1.3 | 60 |
51 | 2" | 65 | 0.3~1.0 | 0.9~3.0 | 1.4 | 60 |
64 | 2.1/2" | 80 | 0.3~1.0 | 0.9~3.0 | 1.8 | 60 |
76 | 3" | 94 | 0.3~1.0 | 0.9~3.0 | 2.1 | 60 |
90 | 3.1/2" | 108 | 0.3~1.0 | 0.9~3.0 | 3 | 60 |
102 | 4" | 122 | 0.3~1.0 | 0.9~3.0 | 3.7 | 60 |
127 | 5" | 172 | 0.3~1.0 | 0.9~3.0 | 4.8 | 40 |
152 | 6" | 182 | 0.3~1.0 | 0.9~3.0 | 7 | 40 |
203 | 8" | 240 | 0.3~1.0 | 0.9~3.0 | 10 | 20 |
