SAE 100R15 Hydraulic Rubber Hose
Sae 100r15 heavy duty, high impulse, multiple-spiral wire reinforced, rubber...
Construction: This hose shall consist of an inner tube of oil resistant synthetic rubber, multiple spiral plies of heavy steel wire wrapped in alternating directions, and an oil and weather resistant synthetic rubber cover. A ply or braid of suitable material may be used over or within the inner tube and/or over the wire reinforcement to anchor the synthetic rubber to the wire.
Tube: Oil resistance synthetic rubber.
Reinforcement: multiple spiral plies of heavy steel wire wrapped.
Cover: Hydraulic fluid and weather resistant synthetic rubber cover.
Application: This section covers hose for use with petroleum base hydraulic fluids.
Working Temperature: -40℃- +100℃.
| |

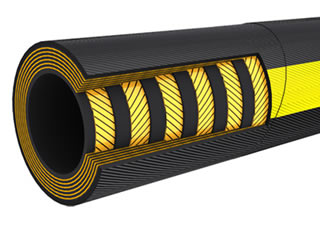

| Structure picture | |
| SIZE | SAE | I.D | W.D | O.D | W.P | P.P | B.P | minB.R | W.T | ||||||
| mm | inch | Dash | Min | Max | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
| 10 | 3/8 | -6 | 9.3 | 10.1 | 20.3 | 23.3 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 5.91 | 150 | 0.80 |
| 13 | 1/2 | -8 | 12.3 | 13.5 | 24.0 | 26.8 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 7.87 | 200 | 0.95 |
| 19 | 3/4 | -12 | 18.6 | 19.8 | 32.9 | 36.1 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 10.40 | 265 | 1.85 |
| 25 | 1 | -16 | 25.0 | 26.4 | 38.9 | 42.9 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 13.00 | 330 | 2.90 |
| 32 | 11/4 | -20 | 31.4 | 33.0 | 48.4 | 51.5 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 17.52 | 445 | 4.20 |
| 38 | 11/2 | -24 | 37.7 | 39.3 | 56.3 | 59.6 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 20.87 | 530 | 5.60 |
