SAE 100R series
SAE 100R6 Hydraulic Rubber Hose
This hose shall consist of an inner tube of oil resistant synthetic tuber, one braid of suitable fiber, and an oil and w.....
Construction: This hose shall consist of an inner tube of oil resistant synthetic tuber, one braid of suitable fiber, and an oil and weather resistant synthetic rubber cover.
Tube: oil resistant synthetic rubber .
Reinforcement: one textile braid wire braided.
Cover: abrasion, oil, ozone and weather resistant synthetic rubber
Applications: This section covers hose for use with petroleum base hydraulic fluids
Working temperature: -40°C~+100°C.
| |

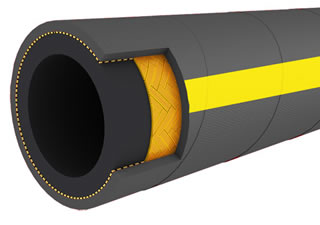

| Structure picture | |
| SIZE | SAE | I.D | O.D | W.P | P.P | B.P | minB.R | W.T | |||||||
| mm | inch | Dash | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
| 5 | 3/16 | -03 | 4.5 | 5.4 | 10.3 | 11.9 | 3.5 | 510 | 7 | 1015 | 14 | 2030 | 1.97 | 50 | 1.10 |
| 6.3 | 1/4 | -04 | 6.1 | 7.0 | 11.9 | 13.5 | 2.8 | 410 | 5.6 | 810 | 11.2 | 1620 | 2.56 | 65 | 0.13 |
| 8 | 5/16 | -05 | 7.6 | 8.5 | 13.5 | 15.1 | 2.8 | 410 | 5.6 | 810 | 11.2 | 1620 | 2.95 | 75 | 0.15 |
| 10 | 3/8 | -06 | 9.2 | 10.1 | 15.1 | 16.7 | 2.8 | 410 | 5.6 | 810 | 11.2 | 1620 | 2.95 | 75 | 0.18 |
| 13 | 1/2 | -08 | 12.4 | 13.5 | 19.0 | 20.6 | 2.8 | 410 | 5.6 | 810 | 11.2 | 1620 | 3.94 | 100 | 0.26 |
| 16 | 5/8 | -10 | 15.6 | 16.7 | 22.2 | 23.8 | 2.4 | 350 | 4.9 | 710 | 9.8 | 1420 | 4.92 | 125 | 0.31 |
| 19 | 3/4 | -12 | 18.7 | 19.8 | 25.4 | 27.8 | 2.1 | 310 | 4.2 | 610 | 8.4 | 1220 | 5.91 | 150 | 0.40 |
