SAE 100R10 Hydraulic Rubber Hose
This hose consists of an inner tube of oil synthetic rubber, four wire spiral reinforcement, and an oil and weather resi.....
Type A - Thick cover (skive type)
Type AT - Thin cover (no-skive type)
Construction: This hose consists of an inner tube of oil synthetic rubber, four wire spiral reinforcement, and an oil and weather resistant synthetic rubber cover.
Tube: Oil resistance synthetic rubber.
Reinforcement: Four wire spiral reinforcement.
Cover: Hydraulic fluid and weather resistant thermoplastic cover.
Application: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
Working Temperature: -40℃~+100℃
| |

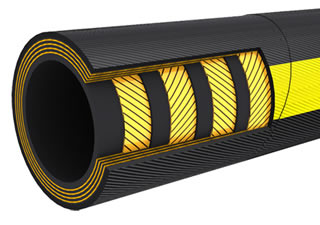

| Structure picture | |
| Nominal diameter | Inside Diameter | Reinforcement Diameter | Outside Diameter | Working Pressure | Proof Pressure | Burst Pressure | Min.Bend Radius | |||
| mm | mm | mm | MPa | PSI | MPa | MPa | mm | |||
| mm | inch | min | max | min | max | max | min | |||
| 6.3 | 1/4＂ | 7.7 | 8.5 | 19.4+-0.5 | — | 60.3 | 8744 | 120.6 | 241.2 | 125 |
| 10 | 3/8＂ | 9.5 | 10.5 | 22.2+-0.5 | — | 51.7 | 7497 | 103.4 | 206.8 | 150 |
| 12.5 | 1/2＂ | 12.7 | 13.5 | 25.9+-0.5 | — | 43.1 | 6250 | 86.2 | 172.4 | 200 |
| 19 | 3/4＂ | 19 | 19.8 | 32.6+-0.5 | 35 | 34.5 | 5003 | 69 | 138 | 280 |
| 25 | １＂ | 25 | 26 | 39.4+-0.5 | 43.5 | 27.6 | 4002 | 55.2 | 110.4 | 360 |
| 31.5 | １-1/4＂ | 32 | 33 | 46.7+-0.5 | 50 | 20.7 | 3002 | 41.4 | 82.8 | 460 |
| 38 | １-1/2＂ | 37.7 | 39 | 5.25+-0.5 | 56 | 17.2 | 2494 | 34.4 | 68.8 | 560 |
| 51 | 2＂ | 50.4 | 52 | 65.4+-0.5 | 71.5 | 17.2 | 2494 | 34.4 | 68.8 | 710 |
