Textile Braided and Spiraled Hose
Food grade rubber hose
Other name: Beer delivery hose, Milk delivery hose, Beverage delivery hose, Drinking water Delivery hose, FDA food grade.....
Other name: Beer delivery hose, Milk delivery hose, Beverage delivery hose, Drinking water Delivery hose, FDA food grade hose.
Tube: abrasion, ozone and weather resistant synthetic rubber.
Reinforcement: high tensile cord and high tensile steel wire helix.
Cover: white or blue CR/BR.
Applications: For delivery of fluid food, drinking water, beverage and so on.
Working Temperature: -20°C~+80°C with intermittent steam sterilizing temperature up to 120°C
|  |

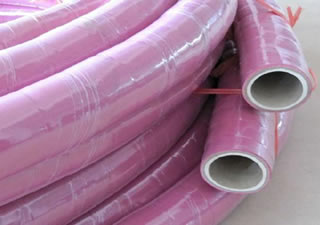

| Structure picture | Real product picture |
| Inner Diameter | Working Pressure | Brusting Pressure | Length | ||||||
| Size/mm | Tolerance/mm | Mpa | Mpa | Size/m | Tolerance/mm | ||||
| 13 | 0.8 | 0.5 | 0.7 | 1 | 2 | 2.8 | 4 | 20 | 200 |
| 16 | 0.8 | 0.5 | 0.7 | 1 | 2 | 2.8 | 4 | 20 | 200 |
| 19 | 0.8 | 0.5 | 0.7 | 1 | 2 | 2.8 | 4 | 20 | 200 |
| 25 | 0.8 | 0.5 | 0.7 | 1 | 2 | 2.8 | 4 | 20 | 200 |
| 32 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2 | 2.8 | 20 | 200 |
| 38 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2 | 2.8 | 20 | 200 |
| 51 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2 | 2.8 | 20 | 200 |
| 64 | 1.5 | 0.3 | 0.5 | 0.7 | 1.2 | 2 | 2.8 | 20 | 200 |
| 76 | 1.5 | 0.3 | 0.5 | 0.7 | 1.2 | 2 | 2.8 | 20 | 200 |
