SAE 100R16 Hydraulic Rubber Hose
This hose consists of an inner tube of oil-resistant synthetic rubber, one and two wire braids reinforcement, and an oil.....
Construction: This hose consists of an inner tube of oil-resistant synthetic rubber, one and two wire braids reinforcement, and an oil- and weather-resistant synthetic rubber cover.
Tube: Oil resistance synthetic rubber.
Reinforcement: one and two wire braids reinforcement
Cover: Hydraulic fluid and weather resistant synthetic rubber cover.
Application: Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
Working Temperature: -40℃- +100℃.
| |

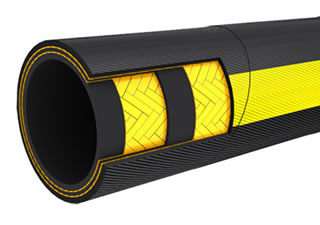

| Structure picture | |
| SIZE | SAE | I.D | W.D | O.D | M.D | W.P | P.P | B.P | Min B.R | W.T | |||||||
| mm | inch | Dash | Min | Max | Max | Max | Min | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
| 6.3 | 1/4" | -4 | 6.2 | 7 | 12.3 | 14.5 | 0.8 | 1.5 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 1.97 | 50 | 0.3 |
| 8 | 5/16" | -5 | 7.7 | 8.5 | 13.3 | 15.7 | 0.8 | 1.5 | 29.7 | 4305 | 59.5 | 8625 | 119 | 17255 | 2.17 | 55 | 0.34 |
| 10 | 3/8" | -6 | 9.3 | 10.1 | 15.9 | 18.8 | 0.8 | 1.5 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 2.56 | 65 | 0.42 |
| 13 | 1/2" | -8 | 12.3 | 13.5 | 19 | 22 | 0.8 | 1.5 | 24.5 | 3550 | 49 | 7105 | 98 | 14210 | 3.54 | 90 | 0.54 |
| 16 | 5/8" | -10 | 15.5 | 16.7 | 22.5 | 25.4 | 0.8 | 1.5 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 3.94 | 100 | 0.68 |
| 19 | 3/4" | -12 | 18.6 | 19.8 | 26.3 | 29 | 0.8 | 1.5 | 15.7 | 2275 | 31.5 | 4565 | 63 | 9135 | 4.72 | 120 | 0.8 |
| 25 | 1" | -16 | 25 | 26.4 | 34 | 36.6 | 0.8 | 1.5 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 5.91 | 150 | 1.15 |
| 32 | 1-1/2" | -20 | 31.4 | 33 | 41.9 | 44.3 | 1 | 2 | 11.3 | 1635 | 22.7 | 3290 | 45.5 | 6595 | 8.27 | 210 | 1.83 |
