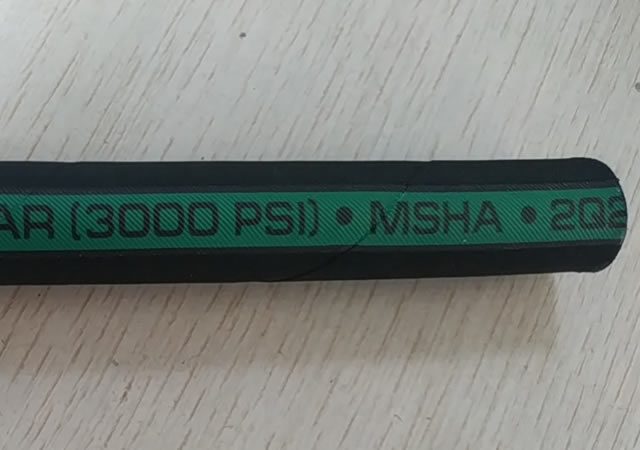

SAE 100R2 Hydraulic Rubber Hose
This hose consists of an inner tube of oil synthetic rubber, two wires braid reinforcement, and an oil and weather resis.....
Type A - Thick cover (skive type)
Type AT - Thin cover (no-skive type)
Construction: This hose consists of an inner tube of oil synthetic rubber, two wires braid reinforcement, and an oil and weather resistant synthetic rubber cover.
Tube: Oil resistant synthetic rubber.
Reinforcement: two high tensile steel wire layers 2/w
Cover: Abrasion and weather resistant synthetic rubber
Applications: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
Working Temperature: From-40℃ up to +100℃
| |
| Structure picture | |
| REFERENCE SPECIFICATION SAE100R2AT | ||||||||||||
| Nominal Diameter | Inside Diameter | Reinforcement Diameter | Outside Diameter | Working Pressure | Proof Pressure | Burst Pressure | Bend Radius | Weight | ||||
| mm | mm | mm | MPa | PSI | MPa | MPa | mm | Kg/m | ||||
| mm | inch | min | max | min | max | max | max | min | min | |||
| 4.8 | 3/16" | 4.6 | 5.4 | 10.6 | 11.7 | 14.1 | 34.5 | 5003 | 68.9 | 138 | 100 | 0.3 |
| 6.4 | 1/4" | 6.2 | 7 | 12.5 | 13.1 | 15.2 | 34.5 | 5003 | 69 | 138 | 100 | 0.3 |
| 7.9 | 5/16" | 7.7 | 8.5 | 14.2 | 14.8 | 17.1 | 29.3 | 4249 | 58.6 | 117 | 115 | 0.36 |
| 9.5 | 3/8" | 9.3 | 10.1 | 16.2 | 16.8 | 19.1 | 27.6 | 4002 | 55.2 | 110 | 130 | 0.49 |
| 12.7 | 1/2" | 12.3 | 13.5 | 19.4 | 20 | 22.3 | 24.1 | 3495 | 48.3 | 96.5 | 180 | 0.56 |
| 15.9 | 5/8" | 15.5 | 16.7 | 22.8 | 23.4 | 25.8 | 19 | 2755 | 38 | 76 | 200 | 0.6 |
| 19 | 3/4" | 18.6 | 19.8 | 26.4 | 27.2 | 29.4 | 15.5 | 2248 | 31 | 62 | 240 | 0.83 |
| 25.4 | 1" | 25 | 26.4 | 33.9 | 34.7 | 37.1 | 13.8 | 2001 | 27.6 | 55.2 | 300 | 1.22 |
| 31.8 | 1-1/4" | 31.4 | 33 | 42.8 | 43.6 | 46.1 | 11.2 | 1624 | 22.4 | 44.8 | 420 | 1.91 |
| 38.1 | 1-1/2" | 37.7 | 39.3 | 49.2 | 50 | 52.5 | 8.6 | 1247 | 17.2 | 34.5 | 500 | 2.17 |
| 50.8 | 2" | 50.4 | 52 | 61.9 | 62.7 | 65.2 | 7.8 | 1131 | 15.5 | 31 | 630 | 2.74 |
| REFERENCE SPECIFICATION SAE100R2A | ||||||||||||
| Nominal Diameter | Inside Diameter | Reinforcement Diameter | Outside Diameter | Working Pressure | Proof Pressure | Burst Pressure | Bend Radius | Weight | ||||
| mm | mm | mm | MPa | PSI | MPa | MPa | mm | Kg/m | ||||
| mm | inch | min | max | min | max | max | max | min | min | |||
| 4.8 | 3/16" | 4.6 | 5.4 | * | * | * | 34.5 | 5003 | 69 | 138 | 100 | 0.4 |
| 6.4 | 1/4" | 6.2 | 7 | 12.5 | 13.1 | 17.5 | 34.5 | 5003 | 69 | 138 | 100 | 0.41 |
| 7.9 | 5/16" | 7.7 | 8.5 | 14.2 | 14.8 | 19.2 | 29.3 | 4249 | 58.6 | 117 | 115 | 0.47 |
| 9.5 | 3/8" | 9.3 | 10.1 | 16.2 | 16.8 | 21.4 | 27.6 | 4002 | 55.2 | 110 | 130 | 0.6 |
| 12.7 | 1/2" | 12.3 | 13.5 | 19.4 | 20 | 24.6 | 24.1 | 3495 | 48.3 | 96.5 | 180 | 0.7 |
| 15.9 | 5/8" | 15.5 | 16.7 | 22.8 | 23.4 | 27.8 | 19 | 2755 | 38 | 76 | 200 | 0.83 |
| 19 | 3/4" | 18.6 | 19.8 | 26.4 | 27.2 | 31.8 | 15.5 | 2248 | 31 | 62 | 240 | 1.02 |
| 25.4 | 1" | 25 | 26.4 | 33.9 | 34.7 | 39.1 | 13.8 | 2001 | 27.6 | 55.2 | 300 | 1.38 |
| 31.8 | 1-1/4" | 31.4 | 33 | 42.8 | 43.6 | 50 | 11.2 | 1624 | 22.4 | 44.8 | 420 | 2.23 |
| 38.1 | 1-1/2" | 37.7 | 39.3 | 49.2 | 50 | 56.5 | 8.6 | 1247 | 17.2 | 34.5 | 500 | 2.46 |
| 50.8 | 2" | 50.4 | 52 | 61.9 | 62.7 | 69.5 | 7.8 | 1131 | 15.5 | 31 | 630 | 3.14 |
