SAE 100R14 Hydraulic Rubber Hose
Type A - Reinforced with a one braid of 303XX series stainless steel Type B - Same as Type A; includes electrically cond.....
Type A - Reinforced with a one braid of 303XX series stainless steel
Type B - Same as Type A; includes electrically conductive inner tube
Construction: This hose consists of an inner tube of chemical resistant PTFE material, braided with stainless steel wire reinforcement cover.
Tube: PTFE hose, for high and low temperature use, anti-corrosive, non-stick.
Cover: SUS304 stainless steel braided, higher pressure resistance, all kinds of couplings can be available.
Application: The hydraulic hose, pneumatic hose and steam hose of the industries of rubber, plastic, clothing, auto, engine bed, shipbuilding, electrical machinery, diesel alternate liquid, gas, and higher corrosive medium and longer service life compared with other hoses.
Working Temperature: -60℃ to +260 ℃
| |

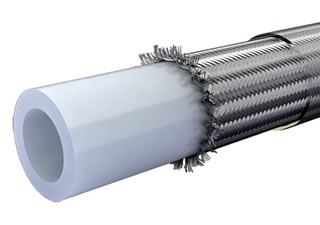

| Structure picture | |
| I.D | O.D | THICKNESS | W.P | B.P | WEIGHT | LENGTH | |
| INCH | MM | MM | MM | BAR | BAR | G/M | M/ROLL |
| 1/8" | 3.2 | 6.2 | 1 | 256 | 625 | 70 | ≥50 |
| 3/16" | 4.8 | 7.7 | 0.85 | 240 | 570 | 90 | ≥50 |
| 1/4" | 6 | 8.8 | 0.85 | 232 | 552 | 110 | ≥50 |
| 5/16" | 7.9 | 10.8 | 0.85 | 194 | 540 | 135 | ≥50 |
| 3/8" | 9.5 | 12.4 | 0.85 | 162 | 450 | 165 | ≥50 |
| 1/2" | 12.7 | 15.9 | 1 | 139 | 425 | 230 | ≥50 |
| 5/8" | 15.9 | 19.3 | 1 | 101 | 385 | 276 | ≥50 |
| 3/4" | 19 | 22.3 | 1.2 | 92 | 315 | 405 | ≥40 |
| 7/8" | 22.2 | 25.8 | 1.2 | 80 | 240 | 460 | ≥40 |
| 1" | 25.4 | 29.8 | 1.5 | 72 | 200 | 510 | ≥20 |
