Suction and Discharge Hose
Suction and Discharge Acid-alkali Hose
Other name: Acid-alkali suction hose, Acid resistance suction and discharge hose, Pressure acid suction hose, Spiral wir.....
Other name: Acid-alkali suction hose, Acid resistance suction and discharge hose, Pressure acid suction hose, Spiral wire reinforced rubber hose, corrugate rubber hose.
Tube: Black, smooth, EPR rubber compound
Reinforcement: High-strength synthetic cord plus helix wire.
Cover: Black, smooth (wrapped finish) EPR rubber compound
Application: Designed to handle a wide range of chemicals, acids and alcohols during the production and transport operations; it is specially recommended for the transfer of industrial water, sea water and can be used on water purification works.
Working Temperature: -40℃ to 120℃
|  |
| Structure picture | Structure picture |
 |  |

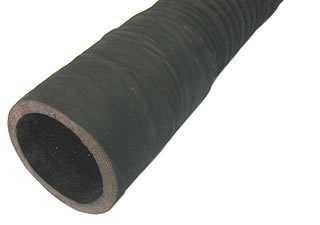

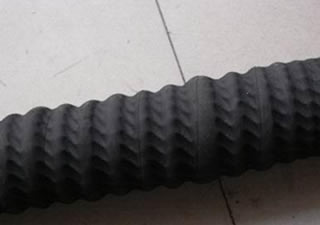

| Real product picture | Real product picture |
Specification:
I.D | O.D | W.P. | B.P. | WEIGHT | LENGTH MAX. | |
MM | INCHI | MM | MPA | MPA | KG/M | M/ROLL |
51 | 2" | 61 | 0.3~1.0 | 0.9~3.0 | 1.4 | 60 |
64 | 2.1/2" | 74 | 0.3~1.0 | 0.9~3.0 | 1.8 | 60 |
76 | 3" | 87 | 0.3~1.0 | 0.9~3.0 | 2.1 | 60 |
90 | 3.1/2" | 102 | 0.3~1.0 | 0.9~3.0 | 3 | 60 |
102 | 4" | 115 | 0.3~1.0 | 0.9~3.0 | 3.7 | 60 |
127 | 5" | 141 | 0.3~1.0 | 0.9~3.0 | 4.8 | 20 |
152 | 6" | 167 | 0.3~1.0 | 0.9~3.0 | 7 | 20 |
203 | 8" | 218 | 0.3~1.0 | 0.9~3.0 | 10 | 20 |
