SAE 100R9 Hydraulic Rubber Hose
This hose consists of an inner tube of oil synthetic rubber, four wire braids reinforcement, and an oil and weather resi.....
Type A - Thick cover (skive type)
Type AT - Thin cover (no-skive type)
Construction: This hose consists of an inner tube of oil synthetic rubber, four wire braids reinforcement, and an oil and weather resistant synthetic rubber cover.
Tube: Oil resistance synthetic rubber.
Reinforcement: Four wire spiral reinforcement.
Cover: Hydraulic fluid and weather resistant thermoplastic cover.
Application: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
Working Temperature: -40℃~+100℃
| |

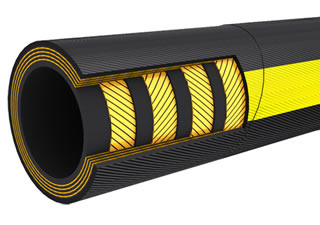

| Structure picture | |
| Nominal Diameter | Inside Diameter | Reinforcement Diameter | Outside Diameter | Working Pressure | Proof Pressure | Burst Pressure | Min.Bend Radius | Weight | ||||
| mm | mm | mm | MPa | PSI | MPa | MPa | mm | Kg/m | ||||
| mm | inch | min | max | min | max | max | max | min | ||||
| 10 | 3/8" | 9.3 | 10.1 | 17.4 | 18.2 | 20.5 | 31 | 4495 | 62 | 124 | 125 | 0.7 |
| 12.5 | 1/2" | 12.3 | 13.5 | 20.3 | 21.1 | 23.5 | 27.6 | 4002 | 55.2 | 110.4 | 180 | 0.83 |
| 19 | 3/4" | 18.6 | 19.8 | 27.3 | 28.1 | 30.7 | 20.7 | 3002 | 41.4 | 82.8 | 240 | 1.3 |
| 25 | 1" | 25 | 26.4 | 35.4 | 36.2 | 39 | 20.7 | 3002 | 41.4 | 82.8 | 300 | 1.7 |
| 31.5 | 1-1/4" | 31.4 | 33 | 44.8 | 45.6 | 49 | 17.2 | 2494 | 34.4 | 68.8 | 420 | 3.08 |
| 38 | 1-1/2" | 37.7 | 39.3 | 50.6 | 51.4 | — | 13.8 | 2001 | 27.6 | 55.2 | 500 | 3.4 |
| 51 | 2" | 50.4 | 52 | 64.6 | 65.4 | — | 13.8 | 2001 | 27.6 | 55.2 | 660 | 4.35 |
