DIN EN 857 2SC Hydraulic Rubber Hose
This hose shall consist of an inner tube of oil resistant synthetic rubber, two braids of steel wire reinforcement, and .....
Construction: This hose shall consist of an inner tube of oil resistant synthetic rubber, two braids of steel wire reinforcement, and an oil and weather resistant synthetic rubber cover.
Tube: Oil resistant synthetic rubber .
Reinforcement: two high tensile steel wire braid.
Cover: oil and weather resistant synthetic rubber cover.
Application: This section hose for use with petroleum base hydraulic fluids.
Working Temperature: -40℃ to +100℃
| |

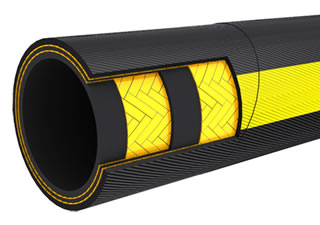

| Structure picture | |
| DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| inch | mm | mm | Mpa | psi | Mpa | psi | mm | kg/m | |
| 6 | 1/4" | 6.4 | 14.2 | 45 | 6525 | 180 | 26100 | 75 | 0.28 |
| 8 | 5/16" | 7.9 | 16 | 40 | 5800 | 160 | 23200 | 85 | 0.36 |
| 10 | 3/8" | 9.5 | 18.3 | 37.5 | 5438 | 150 | 21750 | 90 | 0.41 |
| 13 | 1/2" | 12.7 | 21.5 | 31 | 4495 | 124 | 17980 | 130 | 0.59 |
| 16 | 5/8" | 15.9 | 24.7 | 30 | 4350 | 120 | 17400 | 170 | 0.63 |
| 19 | 3/4" | 19 | 28.6 | 28.7 | 4162 | 115 | 16675 | 200 | 0.8 |
| 25 | 1" | 25.4 | 36.6 | 22.5 | 3263 | 90 | 13050 | 250 | 1.17 |
